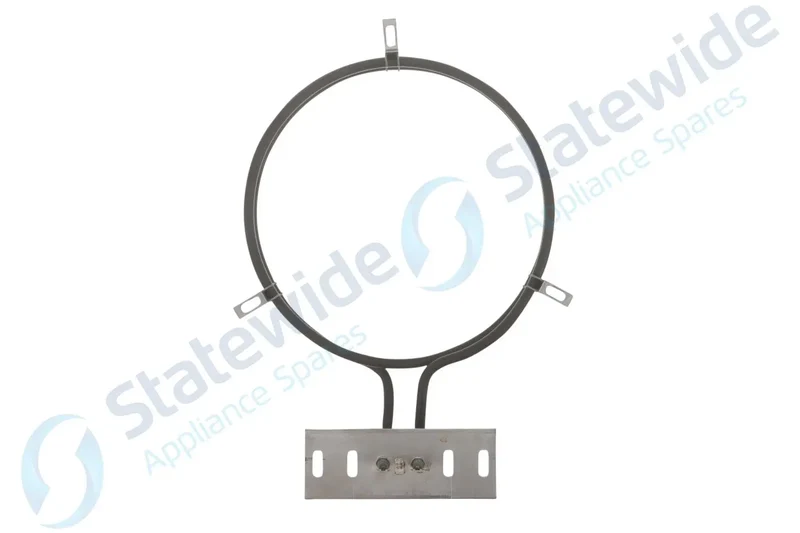

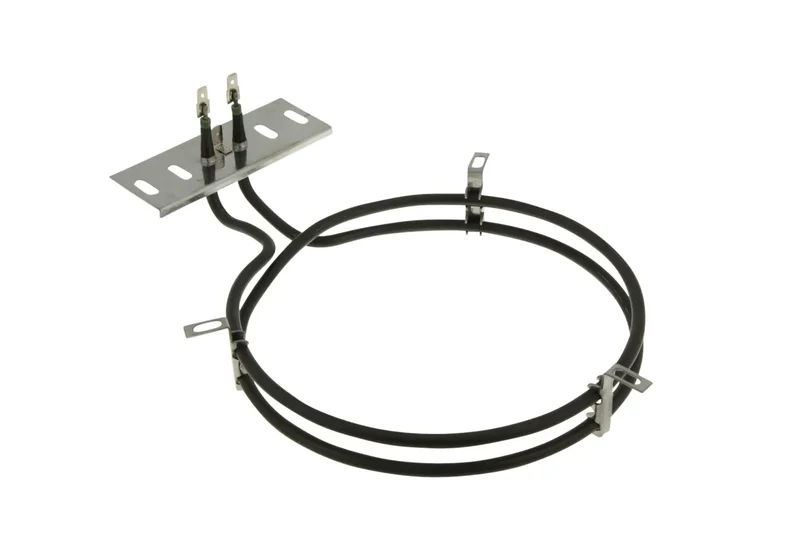

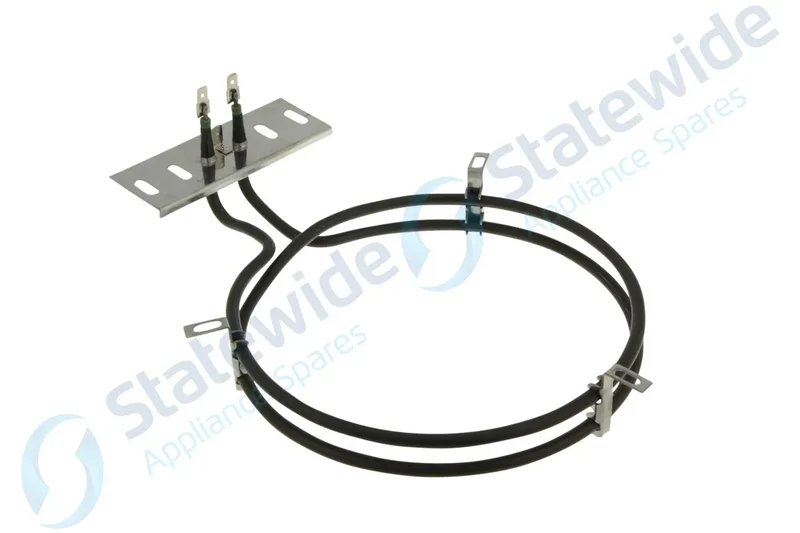

CHEF/SIMPSON/Westinghouse F/F Oven Element 2 Ring 2400W-Genuine

NEW & GENUINE CHEF/SIMPSON/WESTINGHOUSE FAN FORCED OVEN ELEMENT 2 RING 2400W REPLACEMENT PART 1760014650

Compatibility: It is primarily used for older fan-forced freestanding stoves and elevated ovens.# Fits Chef: Ambassador, Balmain, Banquet, Baroness, Classic, Concorde, Condor, Constellation, Coronet, County, Delaware, Elevated, Executive, Family, Glendale, Heritage, Marquis, Monte Carlo, Norfolk, Parisienne, Premier, Regal, Rivoli, Solitaire, Select, Springbrook, Starfire, Supreme. # Simpson & Westinghouse: Finesse, Duo, Integra, Magic, Sapphire, Sirocco, Society, Ultimate.# Vulcan: Classic Australian Vulcan-branded fan-forced ovens.
Function: The main function of part number 1760014650 is to generate the core heat inside a fan-forced oven. When you turn the oven on, the element receives 240V of power and glows red hot. Simultaneously, the fan spins. The fan pulls the cold air from the oven cavity, pushes it past the hot element coils to heat it instantly, and forces the hot air back out into the oven.
Specifications: Wattage: 2400W (2.4 kW), Voltage: 240V AC, 2 ring
Measurements: Outer Diameter: 190 mm (circular heating loop), Inner Diameter: 180 mm, Overall Length: 223 mm, Bracket Width: 45 mm, Terminal Cross-Distance: 25 mm, Terminal Length: 35 mm
When does this part need to be replaced? The oven blows cold air, or the safety switch trips or the oven takes too long to cook.

REPLACES PART NUMBERS: 0122830009, ES4327, 36758, 1558167, FV690000, 56331, FB690000, 10307, 1976, 2828H, 56331, 5824, 21-2562-425, 2824, ES4327, 56331, 3130403, FV690000, TF6791, FE-001, SE109, 56331, 03439 ,36758 FE08, FE01, GRI91024, FE-08, FB6900, TF6791,1976 OK 2828H 56331 5824, 21-2562-425, 2824, ES4327, 56331, 3130403, FV690000, TF6791, FE-001, SE109, 1024, 03439, 36758 FE08, FE01, GRI91024, FE-08, FB6900, TF6791, 1976 BDW522W, 1555153

Check the 'Models This Part Suits' tab below or contact us to confirm if this part fits your appliance.

CHEF/ELECTROLUX/SIMPSON MANUFACTURER'S WARRANTY: 12 month replacement warranty from the date of purchase against defects in materials and workmanship excluding misuse, improperly fitted and/or 'wear & tear' items.
